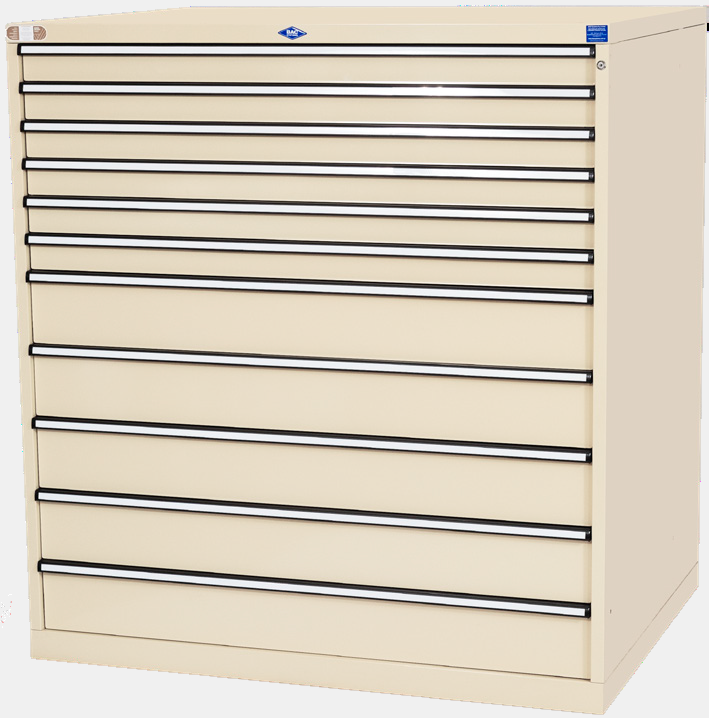

D Series Plan and Artwork Drawer Cabinet for large artwork storage

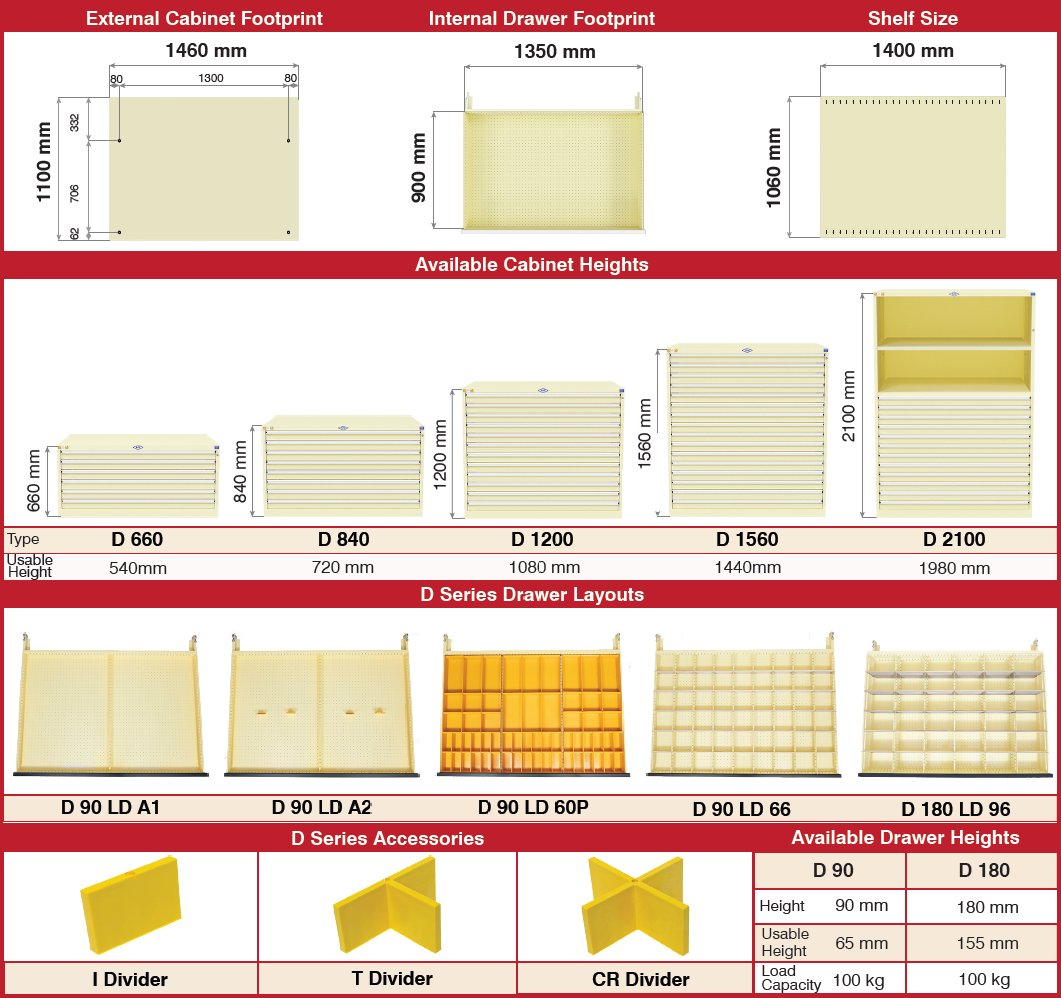

Cabinet footprint 1460mm wide x 1100mm deep.

Internal drawer dimensions 1350mm wide x 900mm deep.


BAC “D” Cabinets are a large module equally suited to plan and map storage or to engineering storage applications. Each drawer is fitted with large 40 mm bearings and heavy gauge rail sets, while the large steel shelves are rated at an even loading capacity of 200 kg.

The BAC “D” Drawer is large enough to comfortably fit an oversized A0 sheet of paper, leaving room around the edges for handling. Drawers can be quickly configured for combinations of smaller sheet sizes using BAC “I”, “T” and “CR” dividers. The drawers come in two different heights, with a load capacity of 100 kg per drawer. Drawers can be fitted with our adjustable partitions and dividers so that they can be used for long item, or bulk (low density) item storage, such as gasket storage or PPE storage in warehouses or workshops.

D Series Plan and Artwork Drawer Cabinet - General Specifications

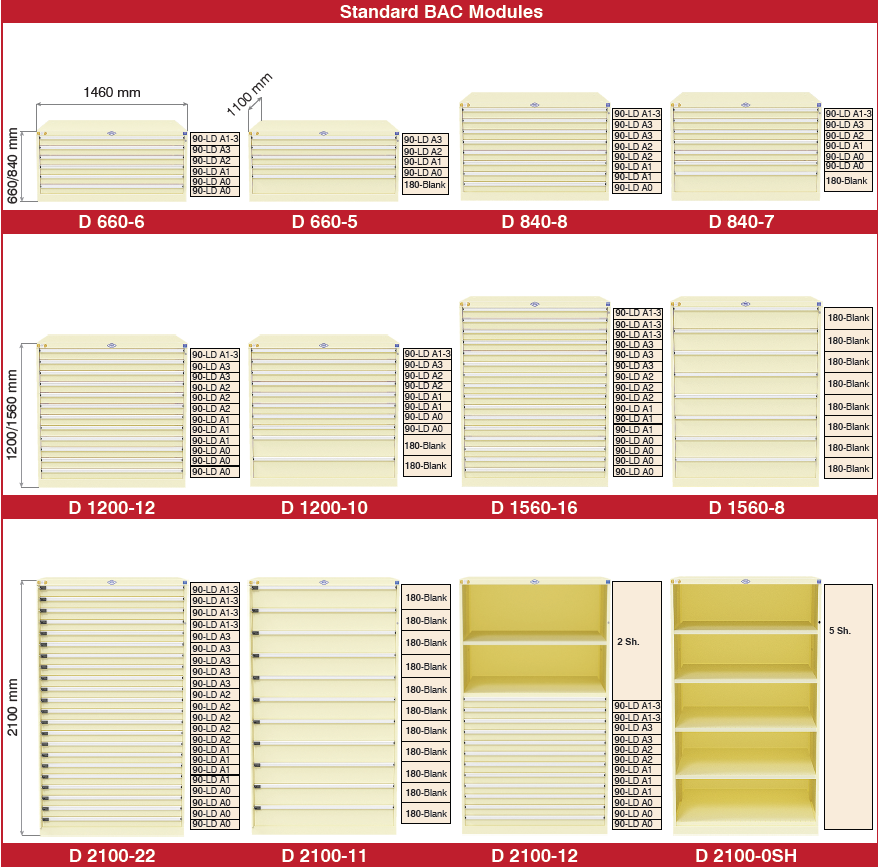

Standard Cabinet Configurations - D Series

(Contact BAC Systems for custom cabinet configurations)

 Standard D Series Paper and Art Drawer Configurations
