B Modules

BAC Standard Modules "B" Series

  • Cabinet footprint 710 mm wide x 755 mm deep.
  • Internal drawer dimensions 600 mm wide x 600 mm deep.

The BAC "B" Series of Drawer Storage Modules provide a sturdy unit that is very durable. The drawers are shorter than the "A" series, but the same large bearings are used. This means that the "B" Series drawer is strong and rigid and is a good cabinet for use in applications where motion and shock will be present, such as on naval ships or in the back of service vehicles. While the "B" Series Module is fitted with the patented BAC Central Locking System, BAC Single Drawer Locks may also be fitted to each drawer to ensure that, even when the cabinet has not been locked, a drawer will not come open unless you want it to. Levelling Feet are a standard option for these cabinets, and lifting eyes or forklift attachments are also available.

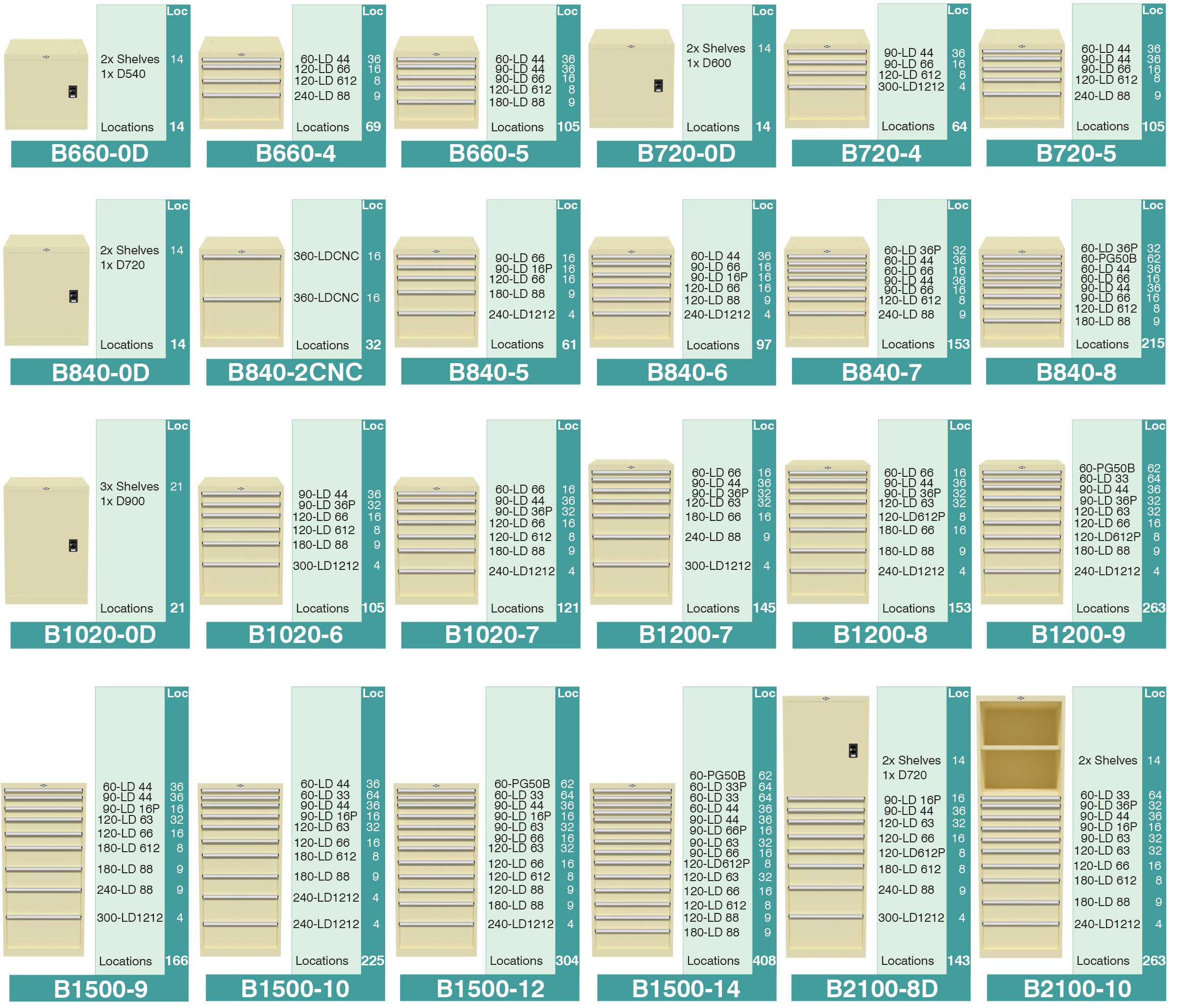

Standard Modules B pg1
Standard Modules B pg2

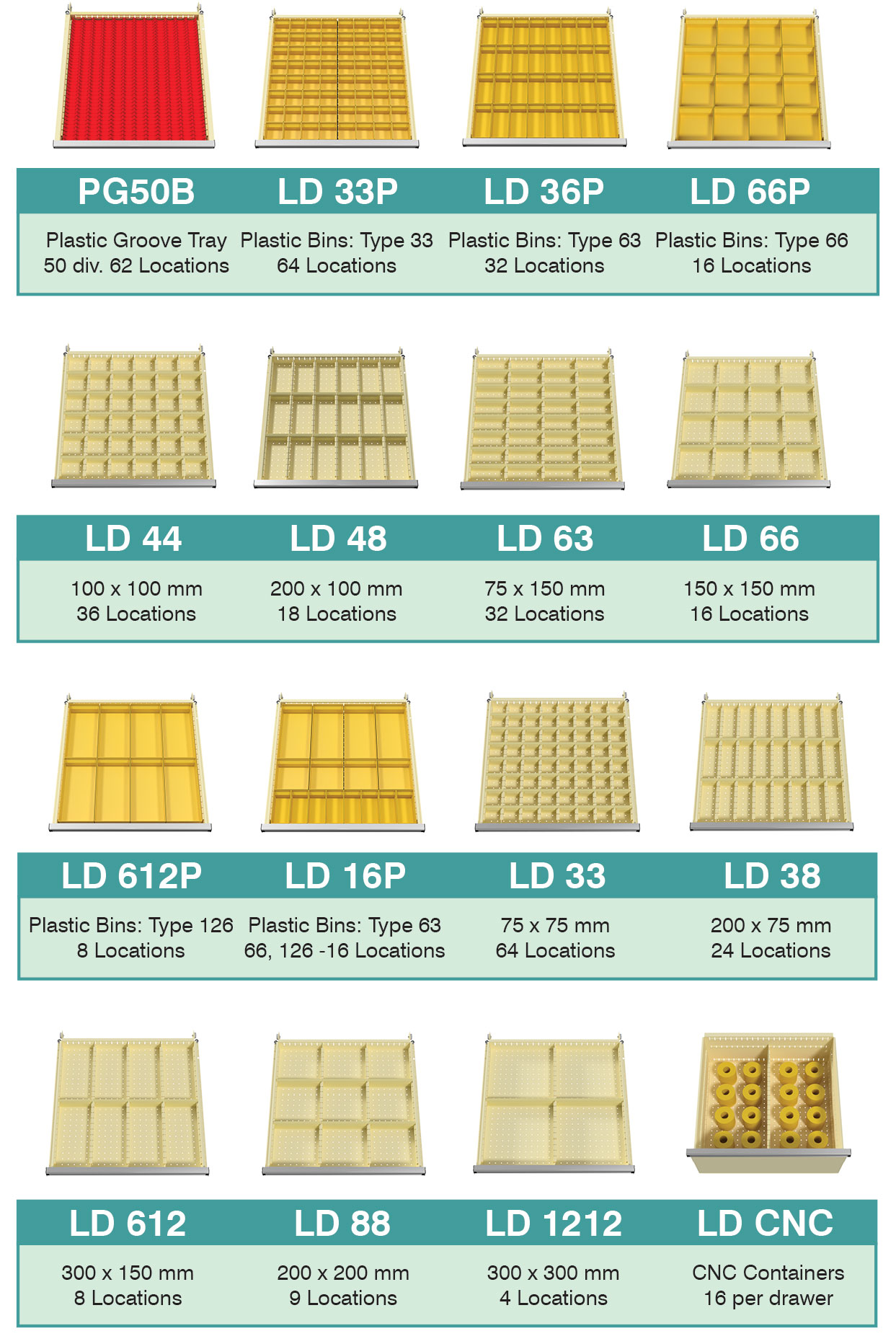

BAC Standard Loading Diagrams "B" Series

Using BAC standard loading diagrams is a quick way to select frequently used configurations for subdividing drawers. They are specified at the time of order and are fitted at the factory to have the drawers ready for loading on delivery. All partitioning material is also available individually for end-user customisation.

b series loading diagrams
