BAC Longspan Modules: ML SERIES

Cabinet footprint 2210mm wide x 575mm deep.

Internal shelf dimensions 2150mm wide x 540mm deep.

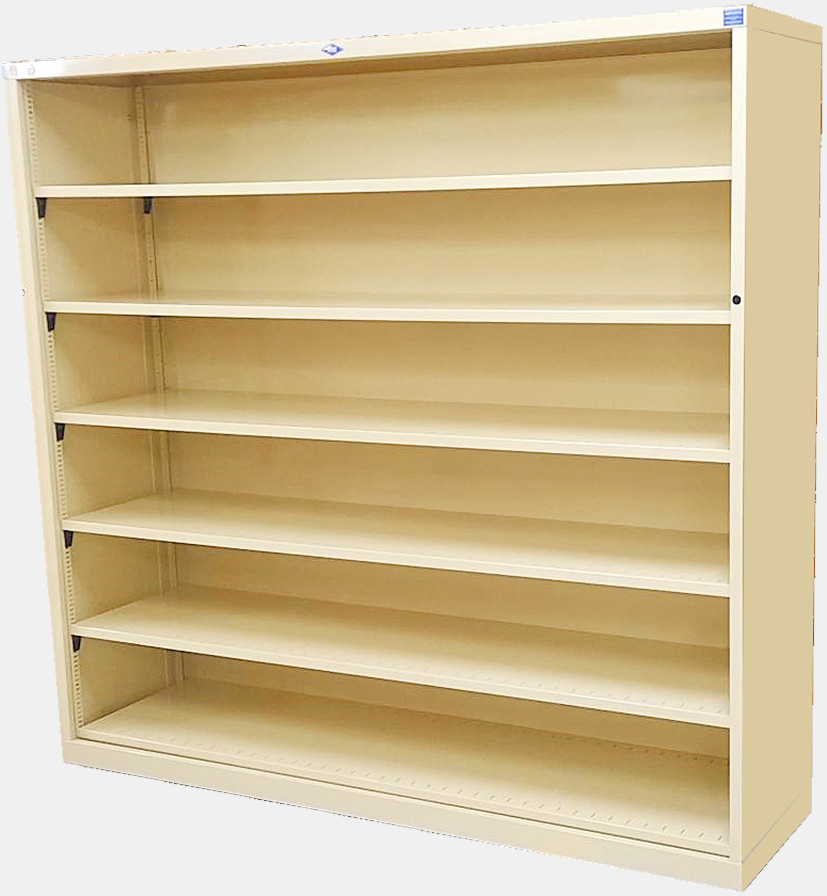

BAC Longspan Shelving Module - ML Series



BAC Longspan Modules are a modular longspan shelving system fitted into a BAC Modular cabinet housing. They offer easy installation and seamless integration with the BAC range of high-density warehousing cabinets.

BAC Longspan uses large powder-coated steel shelves, each with an even loading capacity of 300 kg. Either as open shelving or secured with a tough roller door with clear panels, BAC Longspan Modules are useful as general storage or as a bulk secure storage solution. When fitted with a see-through roller door, you will have relatively dust-free, safe and secure storage. These are stackable and when bolted together, can become a part of a fantastic BAC High-Density Storage System.

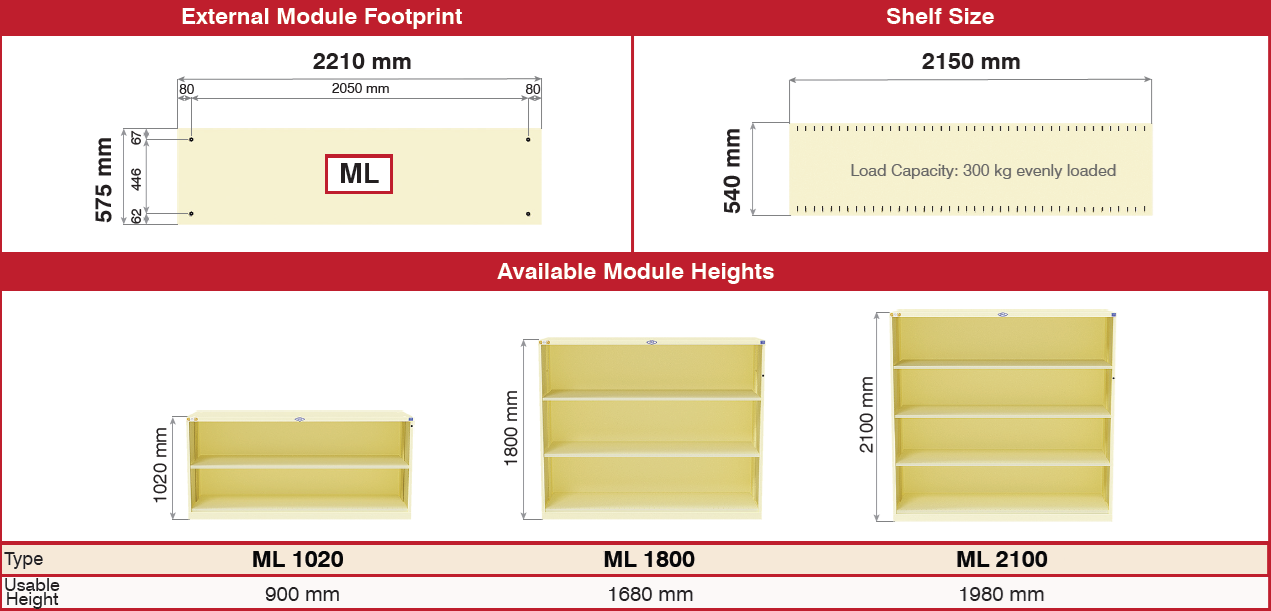

ML Series Longspan Modules - Shelving Cabinet Dimensions

Standard Cabinet Configurations - ML Series

(Contact BAC Systems for custom cabinet configurations)

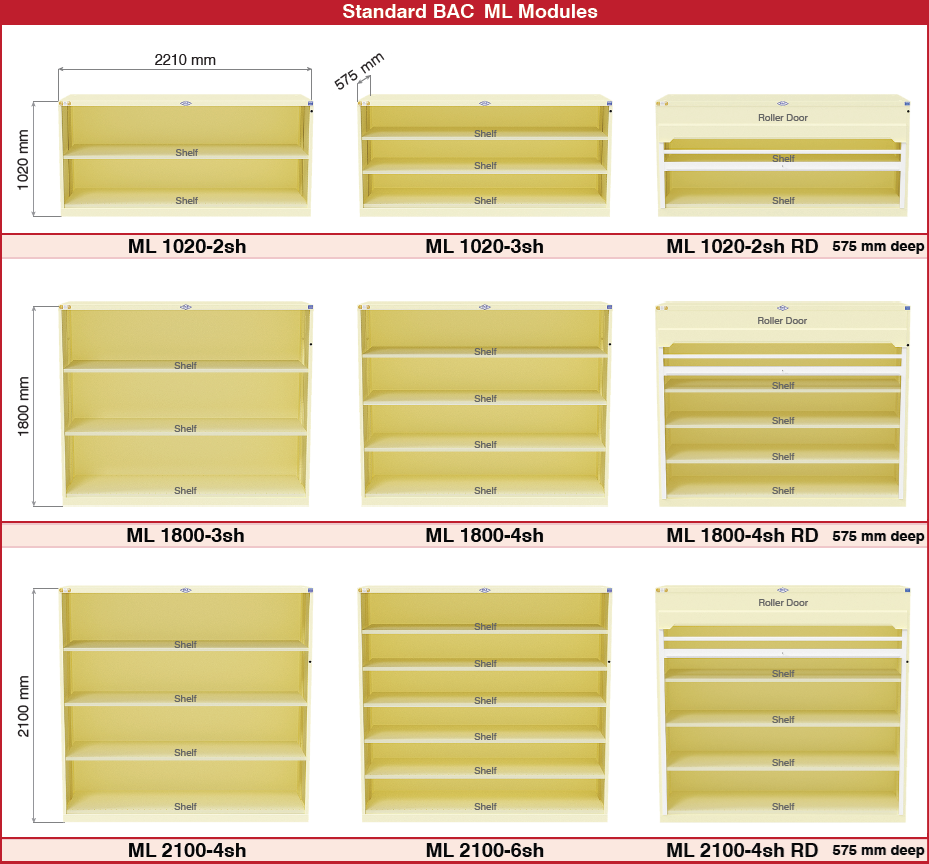

 Standard ML Series Longspan Shelving Module Configurations

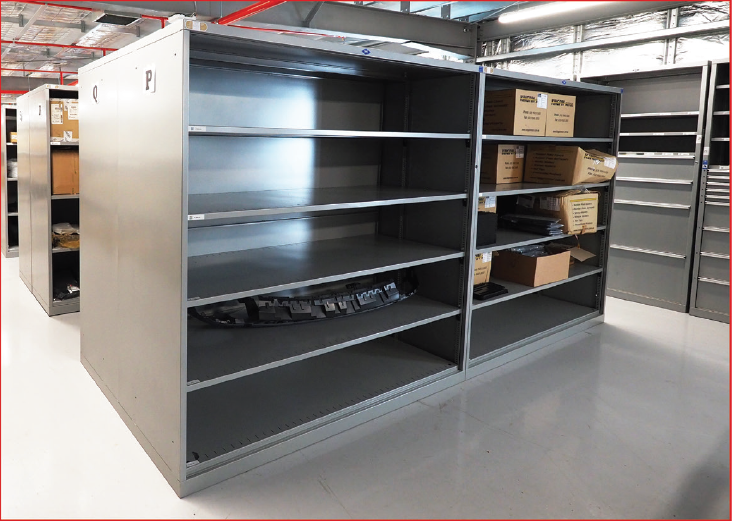

Longspan Shelving Module - Shelving Cabinet   Longspan Module with Roller Door - Secure Shelving Cabinet
